MITSUBISHI RF Amplifier Schematic
Layout


COUPLER-SENSOR

larger picture

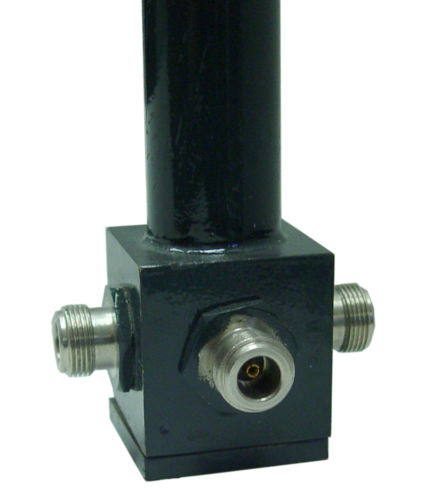

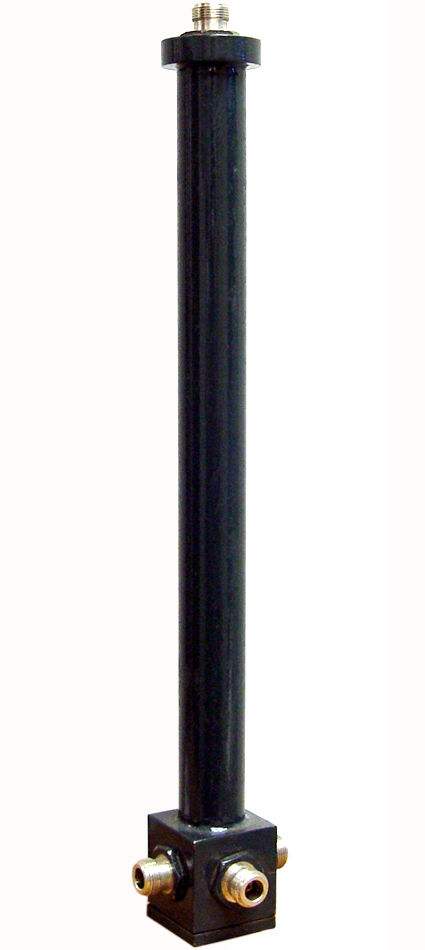

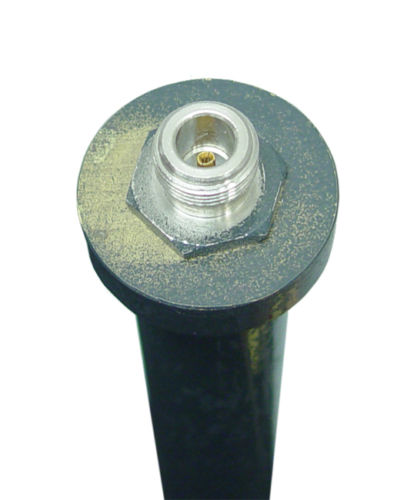

TV TRANSMITTER ANTENNA SPLITTER, 4 WAYS, 470-860 MHz 1000W 50 ohms
Model: : CL4-1KW New Product
  • BROADCAST ANTENNA SPLITTER, 4 WAYS, 470-860 MHz 1000W 50 ohms by Kathrein, Germany
  • RF POWER DIVIDER
  • NOT A HOME MADE PRODUCT, PROFESSIONAL GERMAN MADE BROADCAST SPLITTER FOR PROFESSIONAL TV TRANSMITTER ANALOG OR DIGITAL
larger picture larger picture
Price : $450.00 USD

larger picture

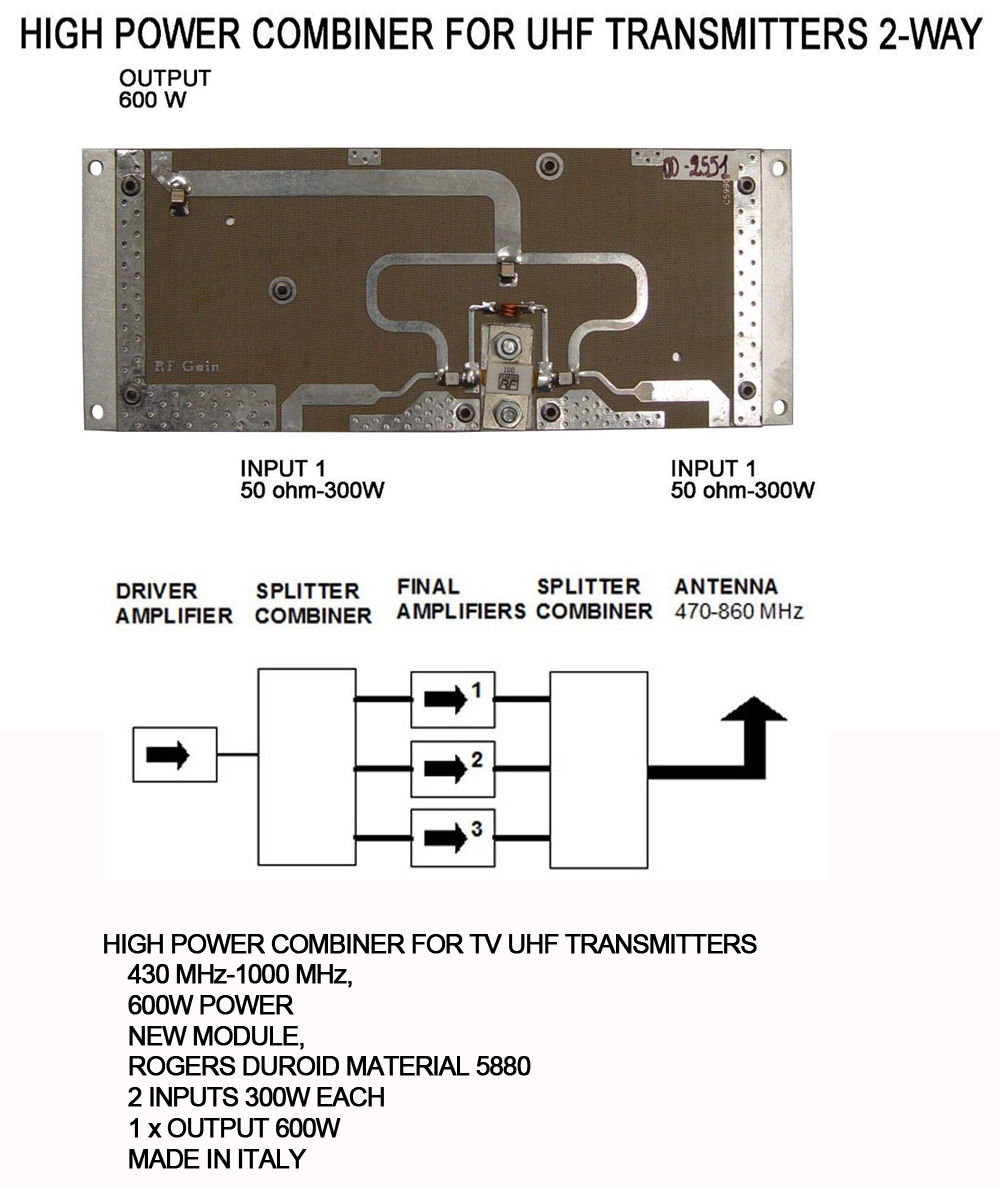

2 WAYS 1 KW VHF POWER DIVIDER / COMBINER VHAC10
Model: : VHAC-10 Data Sheet pdf
  • 2x300W UHF Power Divider / Combiner RF Gain 2 Ways 600W OUTPUT POWER
Price : $68.00 USD

larger picture

larger picture

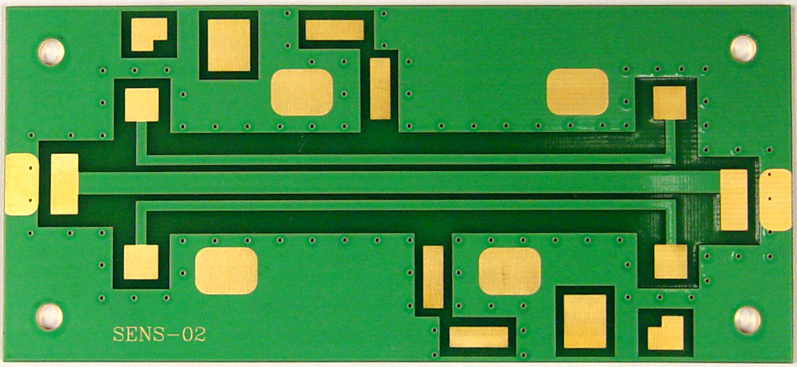

HIGH QUALITY SENSOR -COUPLER BOARD FOR VSWR AND POWER METER
Model: : SENSORBOARD-NF

PC BOARD ONLY- NO PARTS INCLUDED FOR THIS ITEM

NEW DESIGN, NICKEL-GOLD PLATED BOARD

product description :

  • Covers frequency from 10 MHz - 3000 MHz
  • Forward / reflection circuit board wirh high frequency HP diodes
  • Double sided PC board
  • Detects very low output (+5dBm) or less depending on frequency and detector diodes
  • Excellent for TV transmitters , FM transmitters or any transmitting euipment up to 2.4 GHz
  • Handles 350 W for FM band 88-108 MHz
  • 50 Ohms impedance In/Out
  • Board size: 5" x 2"
  • A hard to find item

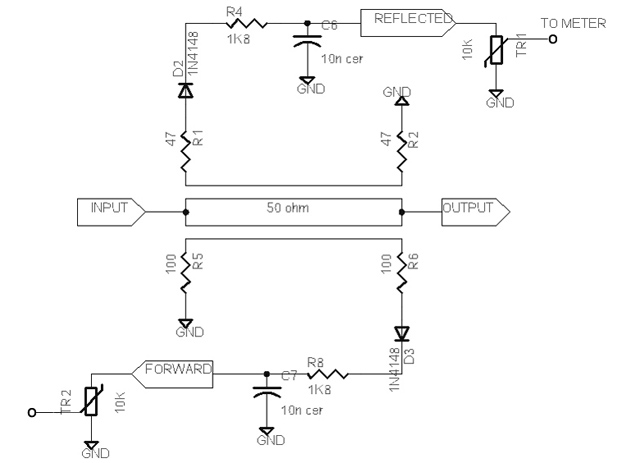

  • Schematic & parts list included
  • Surplus, new item
Price : $10.00 USD

larger picture

4 WAYS 1.2 kW VHF POWER DIVIDER / COMBINER VHAC12
Model: : VHAC-12 Data Sheet pdf
  • 1,600W UHF POWER SPLITTER / Combiner RF Gain 4Ways 1.6KW OUTPUT POWER
  • WIDEBAND 100MHz-860MHz
  • 4 X 400W COMBINED TO 1,600W POWER ORIGINAL ITALIAN DESIGN
Price : $140.00 USD
