PA1132 Ultra Linear Driver Amplifier - 2 Watts 1800 to 2000 MHz
Model: : PA1132
  • LOW NOISE FIGURE: 2.3 dB (TYP.)
  • GAIN: 21.3 dB (TYP.)
  • HIGH P1dB: +33.5 dBm (TYP.)
  • HIGH IP3: +49 dBm (TYP.)
  • BROADBAND RESPONSE: 1.5 GHz TO 2.2 GHz (TYP.)
Price : $120.00 USD

product description :

The PA1132 is a discrete hybrid linear power amplifier design, which uses thick film solder manufacturing processes for accurate performance and high reliability. This 2 stage GaAs FET transistor design uses feedback loops for flat broadband linear performance, with very low noise figure. The model is particularly suited for power driver applications used in the base station & repeater infrastructure, and for commercial & military radios.

INPUT POWER 100 mW, Max OUTPUT POWER 2.3 W.

ERICSON 20081 HIGH POWER RF TRANSISTOR
Model: : PTB20081 Data Sheet pdf

product description :

The 20081 is a class AB, NPN, common emitter RF power transistor intended for 28 to 32 Vdc operation across the 470 to 860 MHz UHF TV frequency band. It is rated at 100 watts minimum output power. 150 Watts (P-Sync), 470–860 MHz • Class AB Characteristics • 55% Collector Efficiency at 100 Watts (CW) • Guaranteed Performance at 28 Volts, 860 MHz - Output Power = 125 Watts (Peak Sync) - Output Power = 100 Watts (CW) - Minimum Gain = 8.5 dB • Guaranteed Performance at 32 Volts, 860 MHz - Output Power = 150 Watts (Peak Sync)

Price : $120.00 USD

MITSUBISHI RF POWER MODULE M57732 FOR KENWOOD, YAESU, MOTOROLA RADIOS
Model: : M57732 Data Sheet pdf

product description :

Original MITSUBISHI module, 144 MHz - 175 MHz radios.

Price : $19.00 USD

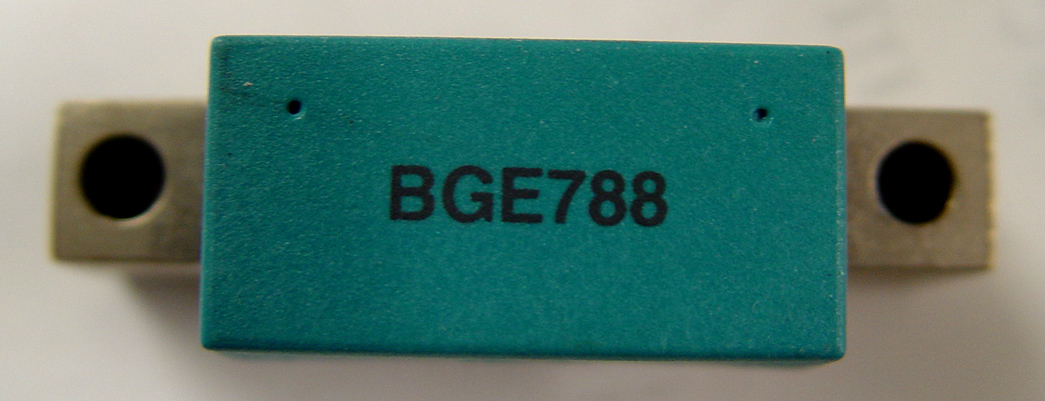

BGE788
Model: : BGE788

product description :

750 MHz, 34 dB gain push-pull amplifier.

Price : $8.00 USD

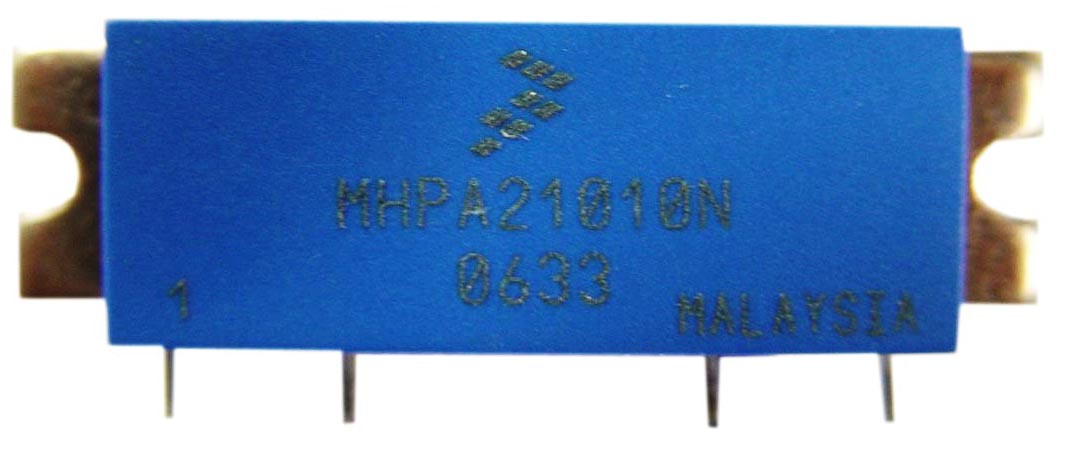

MHPA21010N
Model: : MHPA21010N

product description :

UMTS Band RF Linear LDMOS Amplifier for class AB amplifier applications in 50 ohm systems.

Price : $50.00 USD

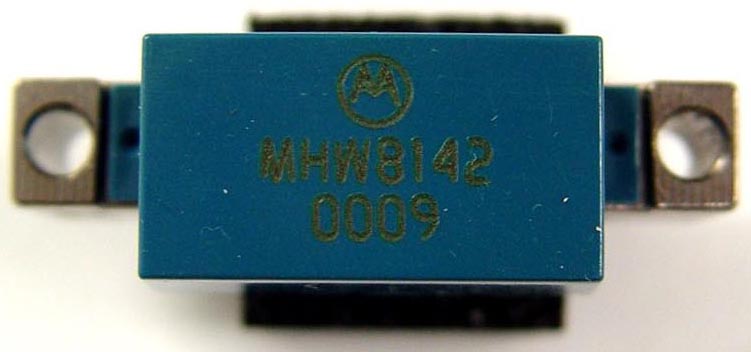

MHW8142
Model: : MHW8142
  • Supply Voltage = 24 Vdc
  • 5th Generation Die Technology
  • Specified for 110/128/152 Channel Performance
  • Power Gain = 14.5 dB max @ f = 50 MHz
  • Superior Gain, Return Loss and DC Current Stability
  • All Gold Metallization.
Price : $10.00 USD

product description :

Designed for 750/860/1000 MHz CATV applications. Features ion–implanted arsenic emitter transistors with an all gold metallization system.

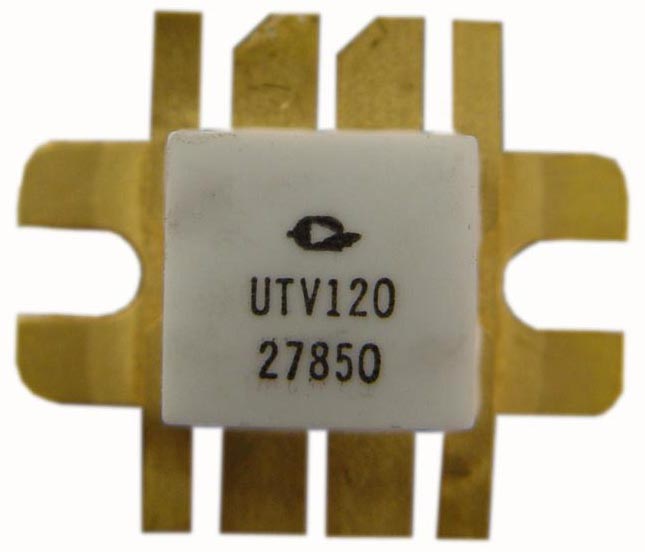

UTV120
Model: : UTV120

product description :

Common emitter transistor. 12 Watts, 26.5 Volts, Class A UHF Television - Band IV & V. Gold metalization and diffused ballasting provide high reliability and ruggedness.

Price : $60.00 USD

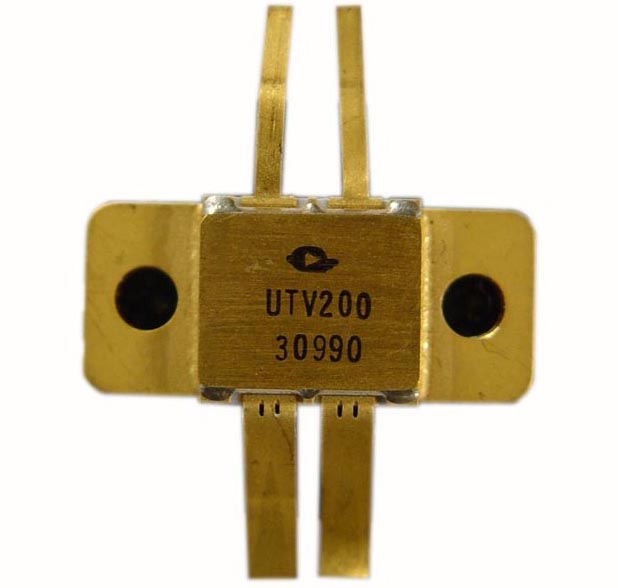

UTV200
Model: : UTV200

product description :

Common emitter transistor capable of providing 20 Watt Peak, Class A, RF Output Power over the band 470 - 860 MHz. Gold metalization and diffused ballasting provide high reliability and ruggedness.

Price : $60.00 USD

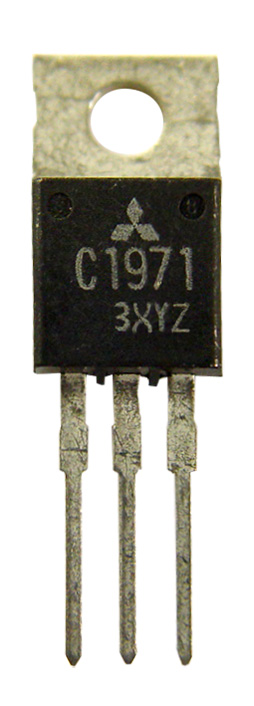

MITSUBISHI TRANSISTOR 2SC1971
Model: : 2SC1971

product description :

Brand new MITSUBISHI transistor from original packaging.

Price : $45.00 USD

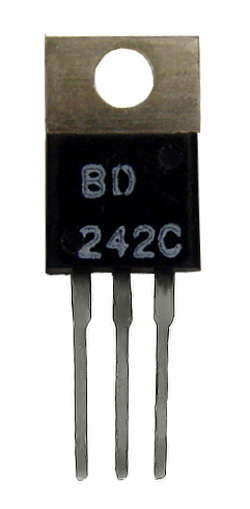

PNP EPITAXIAL SILICON TRANSISTOR BD242C
Model: : BD242C Data Sheet pdf

product description :

Price : $1.00 USD

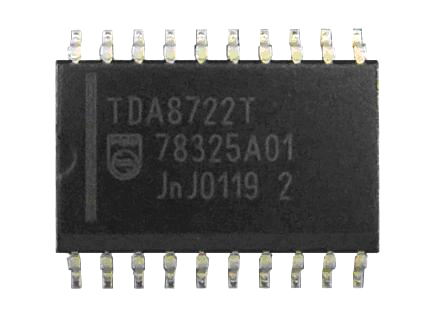

PHILIPS IC-BUS PROGRAMMABLE MODULATOR TDA8722T
Model: : TDA8722T Data Sheetpdf

product description :

This is a programmable modulator which generates an RF TV channel from a baseband video signal and a baseband audio signal in the event of negative video and FM sound standards (PAL B/G, I, D/K and NTSC). It is especially suited for satellite receivers, video recorders and cable converters. The video carrier frequency is set exactly to the correct channel frequency by a PLL synthesizer which is programmed in accordance with the I2C-bus format.

Price : $3.50 USD

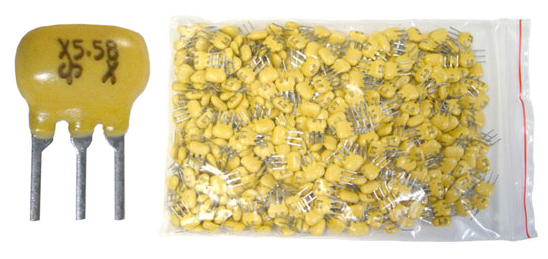

CERAMIC 5.5 MHz FILTER X-5.58
Model: : X5.58
  • Frequency Range (fc): 5.5 MHz
  • Operating Temp.:-20°C ~ +80°C Standard
  • Storage Temperature: -40°C ~ +85°C
  • 3dB Bandwidth: ± 60KHz ~ ± 80KHz
  • 20dB Bandwidth: 530KHz ~ 630KHz
  • Insertion Loss: 6.0dB max
  • Stop Band Attenuation: 20dB ~ 25dB min
  • â—¦Input/Output Impedance: 1KW, 600W, 470W
Price : $1.50 USD

product description :

LT_MB and LTH_MCB series ceramic filters are widely used in telecommunication, cable, radar, TV set, tape recorder, video camera and other electronic products due to its lower price and stable performances.

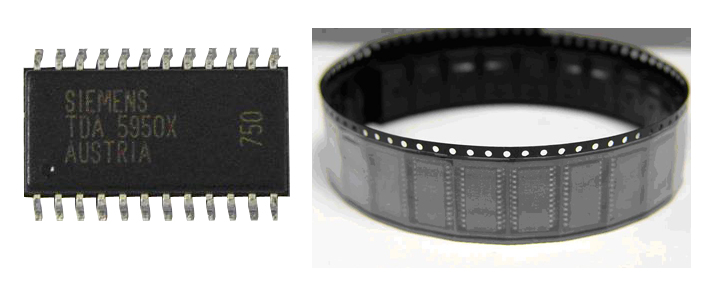

SIEMENS AG AUDIO/VIDEO MODULATOR TDA-5950X
Model: : TDA5950X

product description :

This modulator is suitable for application in television receivers or video tape recorders with A / V switches. FM IF limiter with FM PLL demodulator for the frequency range of 4.5 MHz to 6.5 MHz.

Price : $1.50 USD

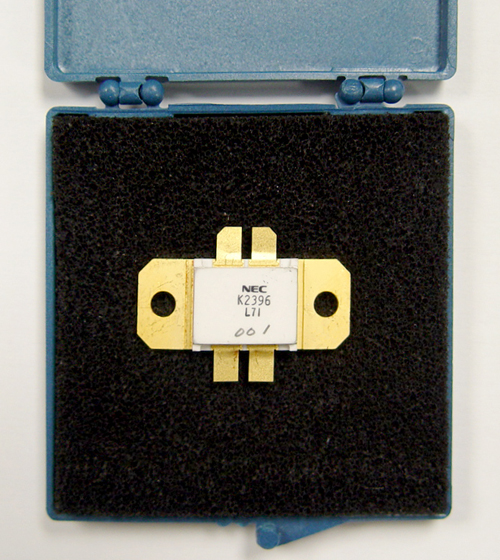

NEC 2SK2396 HIGH POWER BROADCAST TV UHF TRANSISTOR
Model: : 2SK2396

product description :

Price : Out of Stock

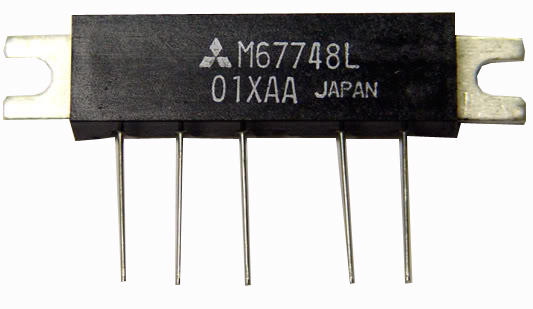

MITSUBISHI RF MODULE M67748L
Model: : M67748L Data Sheet pdf

product description :

For KENWOOD, YAESU, MOTOROLA Radios 144 MHz - 175 MHz radios .

Price : $19.50 USD

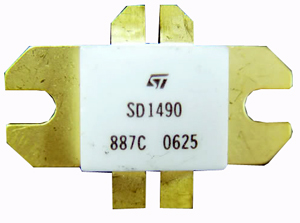

RF & MICROWAVE TRANSISTOR SD1490 FOR TV/LINEAR APPLICATIONS
Model: : SD1490 Data Sheetpdf
  • 470 - 860 MHz
  • 28 VOLTS
  • CLASS A PUSH PULL DESIGNED FOR HIGH POWER LINEAR OPERATION
  • HIGH SATURATED POWER CAPABILITY
  • GOLD METALLIZATION DIFFUSED EMITTER BALLAST RESISTORS
  • COMMON EMITTER CONFIGURATION
  • NTERNAL INPUT MATCHING POUT = 25 W MIN. WITH 9.0 dB GAIN
Price : $141.50 USD

product description :

This is a gold metallized epitaxial silicon NPN planar transistor using diffused emitter ballast resistors for high linearity Class A operation in UHF and Band IV, V television transmitters and transposers.

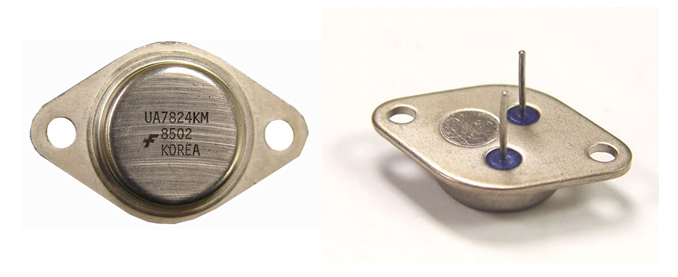

REGULATOR UA7824KM
Model: : UA7824KM

product description :

24V, 3A MAX

Price : $1.50 USD

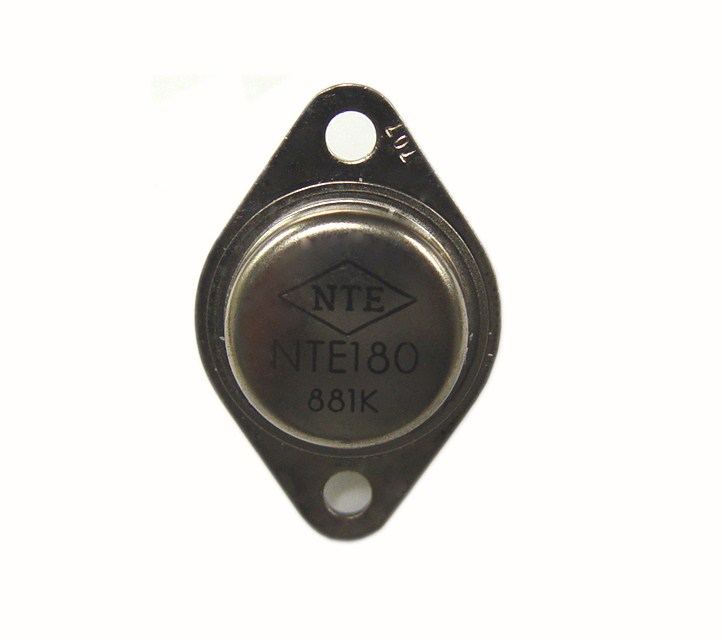

POWER TRANSISTOR NTE180
Model: : NTE180/881K

product description :

Price : $15.00 USD

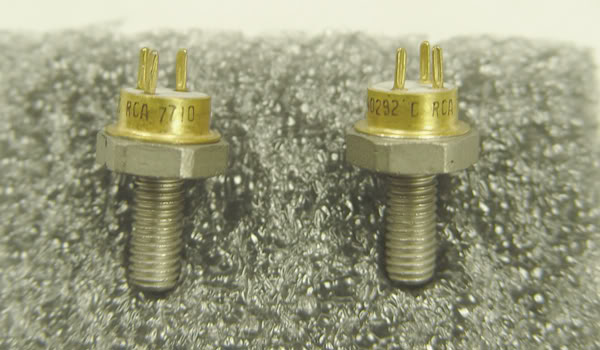

MATCHED PAIR TRANSISTOR RCA7710
Model: : RCA7710

product description :

Price : $20.00 USD

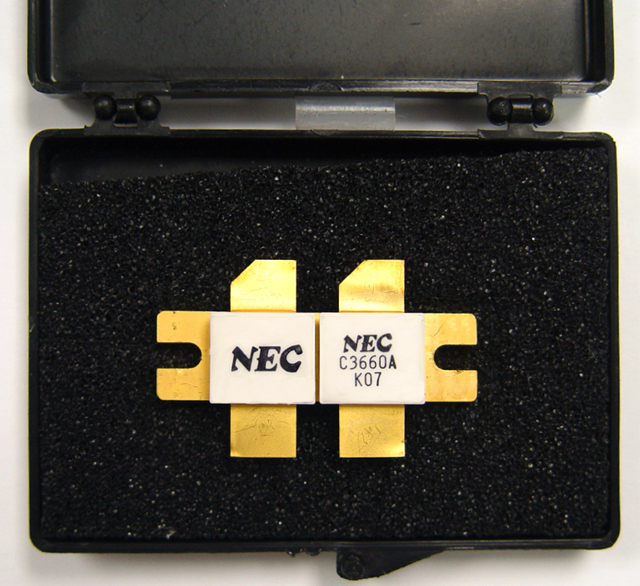

NEC 2SC3660A HIGH POWER BROADCAST TV UHF TRANSISTOR
Model: : 2SC3660A
  • Frequency: 860MHz PA
  • VCB: 55V
  • VCE: 32V
  • IC: 24Am
  • PC: 32W
Price : $80.00 USD

product description :

Made in Japan

INTEGRADED CIRCUIT SN74LS26N
Model: : SN74LS26N

product description :

Price : $2.00 USD

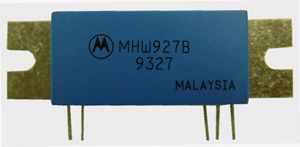

ORIGINAL MOTOROLA UHF LINEAR POWER AMPLIFIER MHW927B
Model: : MHW927B Data Sheet pdf

product description :

Designed specifically for the United States digital 3.0 W, mobile radio. The MHW927B are capable of wide power range control, operate from a 12.5 V supply and require 1.0 mW of RF input power.

Price : $28.00 USD

TRANSISTOR BY TOSHIBA 2N3055
Model: : 2N3055TOSHI

product description :

Price : $10.00 USD

INTEGRADED CIRCUIT MC1327AP BY MOTOROLA
Model: : MC1327AP

product description :

Price : $2.00 USD

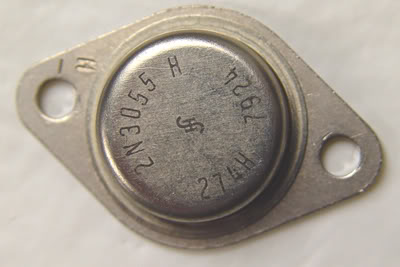

TRANSISTOR BY SIEMENS 2N3055
Model: : 2N3055SIE

product description :

Price : $10.00 USD

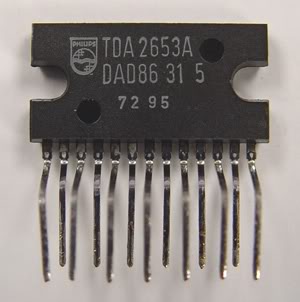

INTEGRADED CIRCUIT BY PHILIPS TDA2653A
Model: : TDA2653A

product description :

Price : $11.00 USD

DIP8 INTEGRADED CIRCUIT BY NEC C575C2
Model: : C575C2

product description :

Price : $4.00 USD

SGS INTEGRADED CIRCUIT HCF4098BE
Model: : HCF4098BE

product description :

Price : $4.00 USD

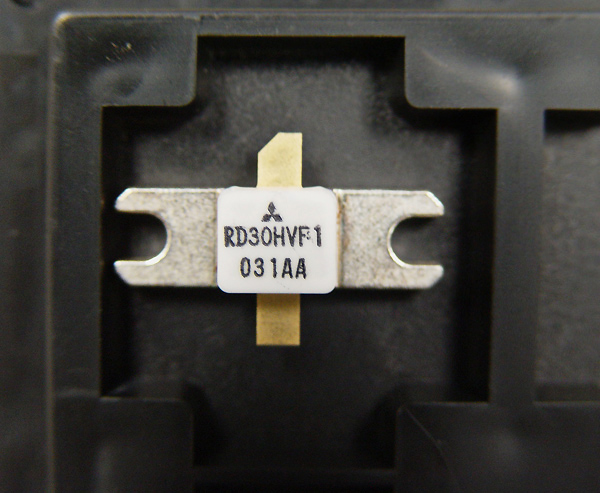

ORIGINAL MITSUBISHI TRANSISTOR RD30HVF1
Model: : RD30HVF1
  • High power gain: Pout>30W,
  • Gp>14.7dB @Vdd=12.5V,f=175MHz
  • High Efficiency: 60%typ.
  • APPLICATION
  • For output stage of high power amplifiers in VHF band Mobile radio sets.
Price : $28.00 USD

product description :

RD30HVF1 is a MOS FET type transistor specifically designed for VHF RF power amplifiers applications.

16-PIN SIEMENTS INTEGRADED CIRCUIT HYB41256
Model: : HYB41256

product description :

Price : $3.00 USD

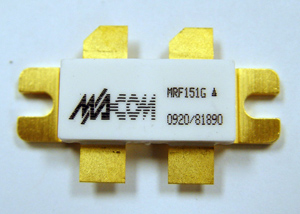

RF POWER FIELD - EFFECT TRANSISTOR  MRF151G
Model: : MRF151G Data Sheet pdf
  • Guaranteed Performance at 175 MHz, 50 V:
    • Output Power — 300 W
    • Gain — 14 dB (16 dB Typ)
    • Efficiency — 50%
  • Low Thermal Resistance — 0.35°C/W
  • Ruggedness Tested at Rated Output Power
  • Nitride Passivated Die for Enhanced Reliability
Price : $160.00 USD

product description :

SPECIAL MATCHED PAIR, MATCHED FROM THE FACTORY

Designed for broadband commercial and military applications at frequencies to 175 MHz. The high power, high gain and broadband performance of this device makes possible solid state transmitters for FM broadcast or TV channel frequency bands.

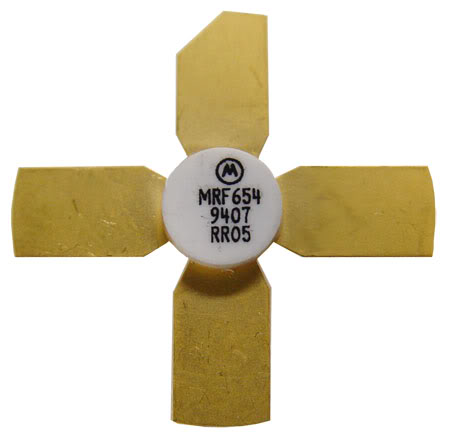

RF POWER TRANSISTOR MRF654
Model: : MRF654 Data Sheetpdf
  • 12.5 Volt, 512 MHz
  • Built–In Matching Network for Broadband Operation
  • Gold Metallized, Emitter Ballasted for Long Life and Reliability
  • Capable of 20:1 VSWR Load Mismatch at 15.5 V Supply Voltage
Price : $18.00 USD

product description :

Designed for 12.5 Volt UHF large–signal amplifier applications in industrial and commercial FM equipment operating to 512 MHz.

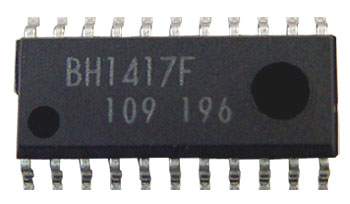

FM STEREO TRANSMITTER IC - BH1417F
Model: : BH1417F

product description :

The BH1417F is a FM stereo transmitter IC that transmits simple configuration. The IC consists of a stereo modulator for generating stereo composite signals and a FM transmitter for broadcasting a FM signal on the air. The stereo modulator generates a composite signal which consists of the MAIN, SUB, and pilot signal from a 38kHz oscillator. The FM transmitter radiates FM wave on the air by modulating the carrier signal with a composite signal. Frequency is set for North America.

Applications:
Wireless speakers, Personal computer (sound board), Game machine, CD changer, Car TV, Car navigatio

Price : $4.00 USD

16-PIN INTEGRATED CIRCUIT BY ITT TDA9503
Model: : TDA9503

product description :

Price : $10.00 USD

16-PIN INTEGRATED CIRCUIT BY MOTOROLA MC14099BAL
Model: : MC14099BAL

product description :

Price : $6.00 USD

20-PIN INTEGRATED CIRCUIT AM25LS373PC
Model: : AM25L

product description :

Price : $9.00 USD

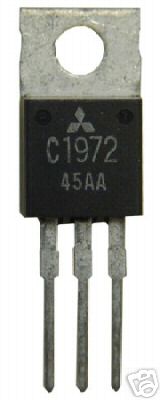

ORIGINAL MITSUBISHI TRANSISTOR 2SC1972
Model: : 2SC1972

product description : A REAL AND ORIGINAL JAPANESE VINTAGE TRANSISTOR

Price : $99.00 USD

ORIGINAL MITSUBISHI TRANSISTOR 2SC1972 matched pair
Model: : 2SC1972

product description : A REAL AND ORIGINAL JAPANESE VINTAGE TRANSISTOR, MATCHED PAIR

Price : $220.00 USD

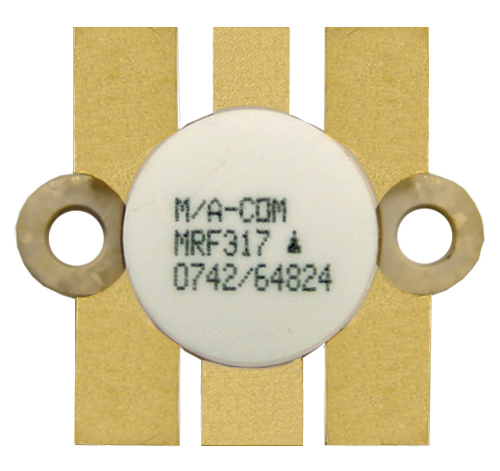

VHF HIGH POWER TRANSISTOR FOR FM BROADCAST MRF317
Model: : MRF317 Data Sheetpdf
  • Guaranteed Performance at 150 MHz, 28 Vdc  ; Output Power = 100 W ;  Minimum Gain = 9.0 dB
  • Built–In Matching Network for Broadband Operation
  • 100% Tested for Load Mismatch at all Phase Angles with 30:1 VSWR
  • Gold Metallization System for High Reliability
  • High Output Saturation Power — Ideally Suited for 30 W Carrier/120 W Peak AM Amplifier Service
  • Guaranteed Performance in Broadband Test Fixture
Price : $44.00 USD

product description :

Designed primarily for wideband large–signal output amplifier stages in 30–200 MHz frequency range.
