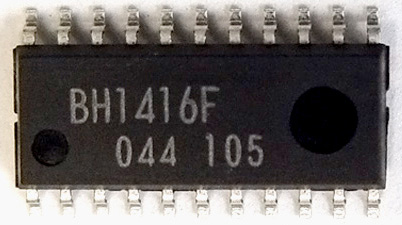

FM STEREO TRANSMITTER IC- BH1416F
Model: : BH1416F

product description :

The BH1416F is a FM stereo transmitter IC that transmits simple configuration. The IC consists of a stereo modulator for generating stereo composite signals and a FM transmitter for broadcasting a FM signal on the air. The stereo modulator generates a composite signal which consists of the MAIN, SUB, and pilot signal from a 38kHz oscillator. The FM transmitter radiates FM wave on the air by modulating the carrier signal with a composite signal.

Applications
Wireless speakers, Personal computer (sound board), Game machine, CD changer, Car TV, Car navigation.

Price : $5.00 USD

larger picture

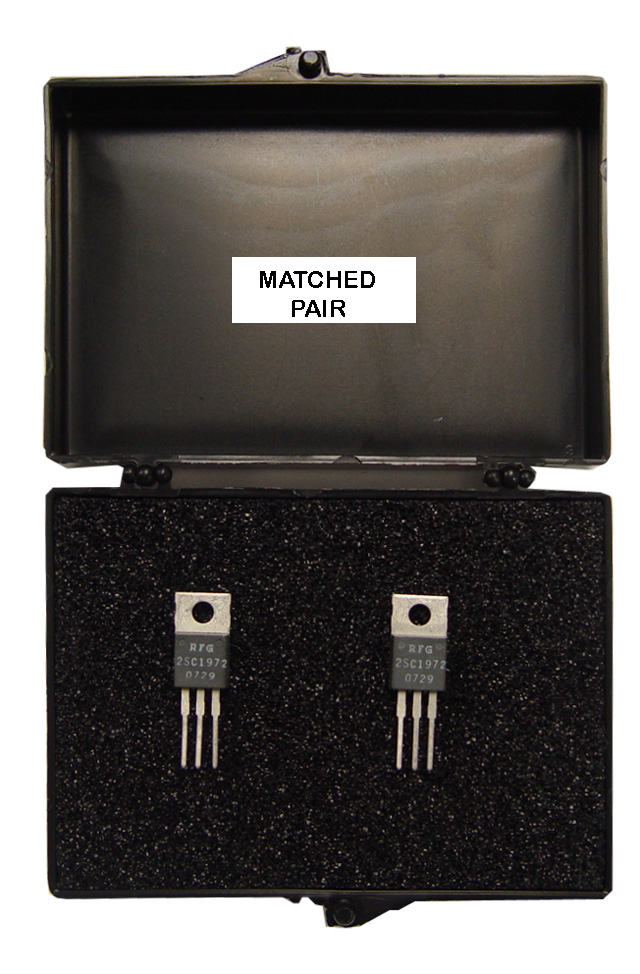

2SC1972 TRANSISTOR - MATCHED PAIR
Model: : 2SC1972P
Price :$87.00

larger picture

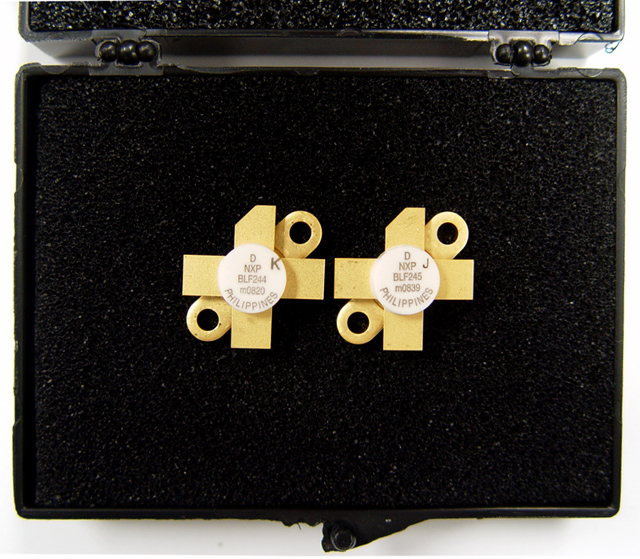

VHF POWER MOS TRANSISTOR MATCHED PAIR
Model: : BLF244PAIR Data Sheet1 pdf Data Sheet2 pdf

product description :

BLF 244 & BLF 245 MATCHED PAIR BY NXP - PHILIPS

Price : $55.00 USD

larger picture

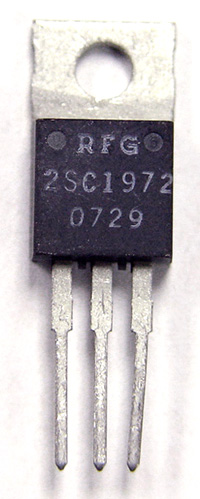

TRANSISTOR RFG-2SC1972
Model: : 2SC1972
Price : call

larger picture

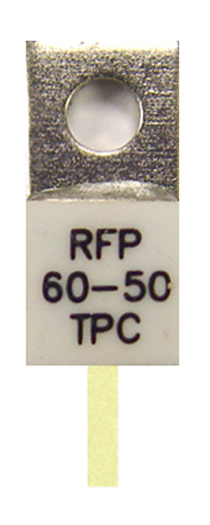

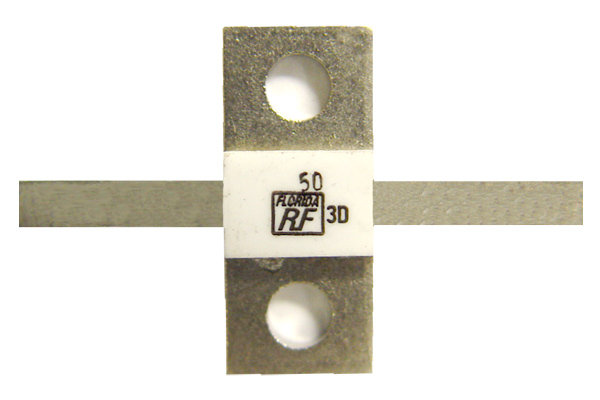

RF POWER FLANGED TERMINATION RESISTOR 60 W
Model: : RFP60-50 Data Sheet pdf
  • FREQUENCY: DC - 6 GHz
  • POWER: 60 Watts
  • RESISTANCE VALUE: 50 Ohms
  • V.S.W.R.: 1.25: 1
Price : $10.00 USD

larger picture

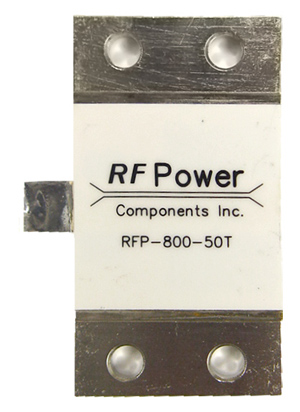

RF POWER FLANGED TERMINATION RESISTOR 800W
Model: : RFP800-50T Data Sheet pdf
  • FREQUENCY: DC - 500 MHz
  • POWER: 800 Watts
  • RESISTANCE VALUE: 50 Ohms
  • V.S.W.R.: 1.50 : 1
Price : $85.00 USD

larger picture

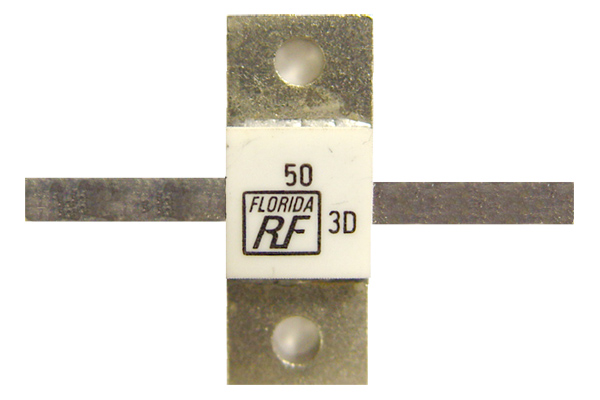

TERMINATION RESISTOR FLANGE MOUNT 250W
Model: : RF250W
  • Resistance: 50 ohms
  • Power (W): 250
  • Frequency (GHz): 1
  • Operating Temperature: -55 to +150C
Price : no stock

http://www.electronicstudio.net/ebay88spec89/atc25ohms.jpg

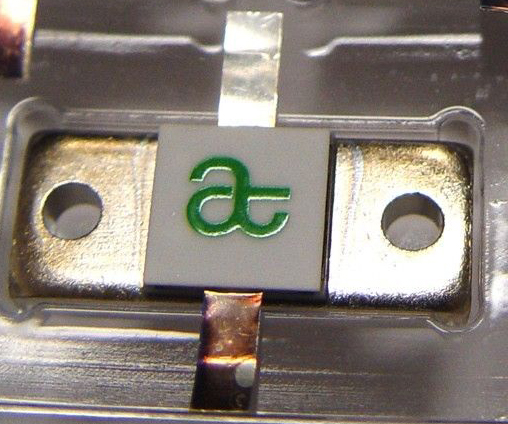

ATC TERMINATION RESISTOR FLANGE MOUNT 250W 25 OHMS
Model: : RF250W -25
  • Resistance: 25 ohms
  • Power (W): 250
  • Frequency (GHz): 2
  • Operating Temperature: -55 to +150C
Price : $19.00 USD

larger picture

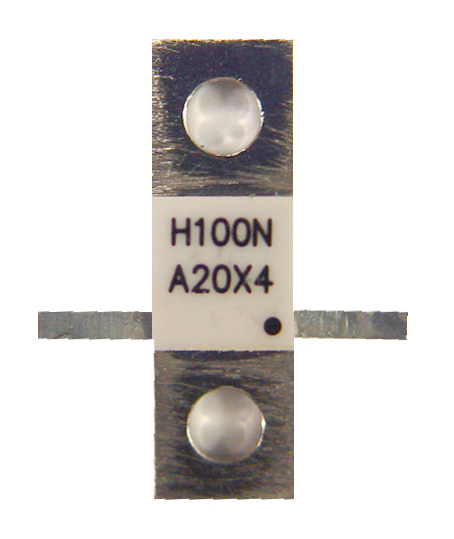

RF POWER FLANGED ATTENUATOR 100W, 20dB
Model: : H100N Data Sheet pdf
  • Attenuation Value: 20 dB, ± 1.0 dB,
  • DC – 4.0GHz
  • Input-Output: 50 Ohm
  • Power: 100 Watts
  • Frequency Range: DC – 4.0 GHz
  • Return Loss > 24 dB to 2.7 GHz, > 20 dB to 4.0 GHz
Price : call

larger picture

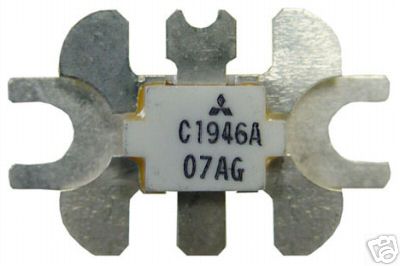

ORIGINAL MITSUBISHI TRANSISTOR C1946A
Model: : C1946A
Price : $25.00 USD

larger picture

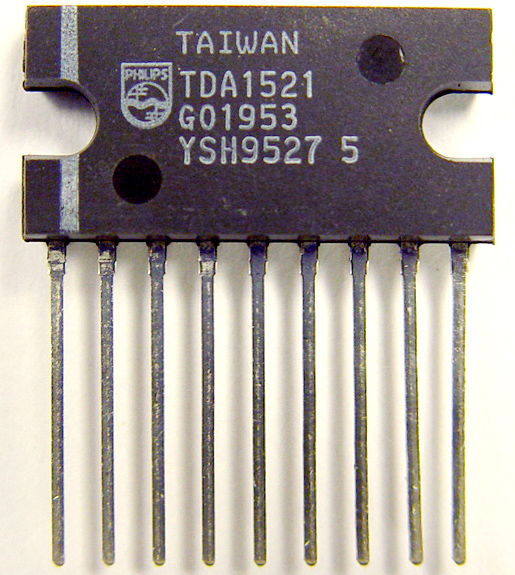

HI-FI AUDIO POWER AMPLIFIER TDA1521
Model: : TDA8722T Data Sheetpdf

product description :

The TDA1521 is a dual hi-fi audio power amplifier encapsulated in a 9-lead plastic power package. The device is especially designed for mains fed applications (e.g. stereo tv sound and stereo radio).

FEATURES

  • Requires very few external components
  • Input muted during power-on and off (no switch-on or switch-off clicks)
  • Low offset voltage between output and ground
  • Excellent gain balance between channels
  • Hi-fi according to IEC 268 and DIN 45500
  • Short-circuit-proof
  • Thermally protected
Price : $15.00 USD

larger picture

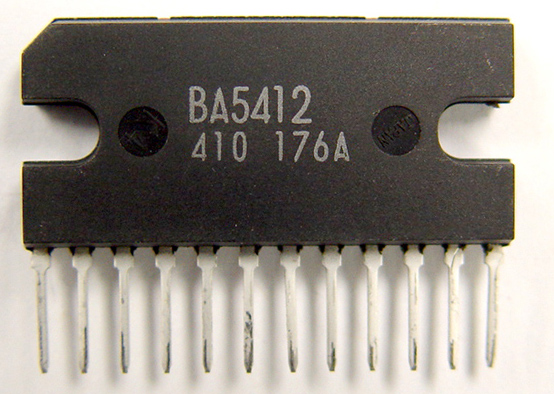

POWER AMPLIFIER BA 5412
Model: : BA5412
Price : $15.00 USD

larger picture

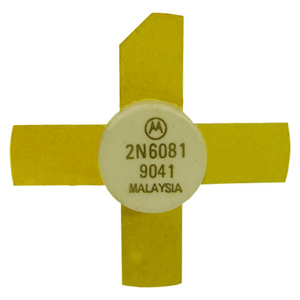

ORIGINAL MOTOROLA FM & MICROWAVE TRANSISTOR 2N6081
Model: : 2N6081

product description :

This line of epitaxial silicon NPN-planar transistor is designed priority for VHF mobile and marine transmitters.

  • Frequency: 175MHz
  • Voltage: 25V
  • Power Out: 15W
  • High Power Gain: 6.5dB
  • High Efficiency
  • FM Class C Transistor
  • Common Emitte
Price : $18.00 USD

larger picture

INTEGRADED CIRCUIT SAS670 BY TFK
Model: : SAS670
Price : $16.00 USD

larger picture

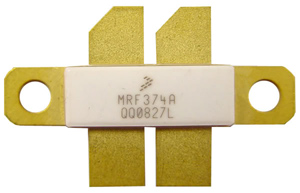

RF POWER FIELD - EFFECT TRANSISTOR MRF374A
Model: : MRF374A Data Sheet pdf

N-Channel Enhancement-Mode Lateral MOSFET

product description :

Designed for broadband commercial and industrial applications with frequencies from 470 to 860 MHz. The high gain and broadband performance of this device make it ideal for large - signal, common source amplifier applications in 28/32 volt transmitter equipment. Typical Two-Tone Performance @ 860 MHz, 32 Volts, Narrowband Fixture

  • Output Power . 130 Watts PEP
  • Power Gain . 17.3 dB
  • Efficiency . 41%
  • IMD . -32.5 dBc

Capable of Handling 10:1 VSWR @ 32 Vdc, 857 MHz, 130 Watts CW Output Power

FEATURES

  • Integrated ESD Protection
  • Excellent Thermal Stability
  • Characterized with Differential Large-Signal Impedance Parameters
  • RoHS Compliant
Price : $59.00 USD

larger picture

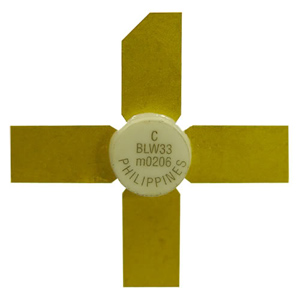

UHF LINEAR POWER AMPLIFIER TRANSISTOR BLW33 BY PHILIPS
Model: : BLW33 Data Sheetpdf

product description :

N-P-N silicon planar epitaxial transistor primarily intended for use in linear u.h.f. amplifiers for television transmitters and transposers. The excellent d.c. dissipation properties for class-A operation are obtained by means of diffused emitter ballasting resistors and a multi-base structure, providing an optimum temperature profile on the crystal area. The combination of optimum thermal design and the application of gold sandwich metallization realizes excellent reliability properties. The transistor has a 1¤4" capstan envelope with ceramic cap.

Price : $69.00 USD

larger picture

INTEGRADED CIRCUIT TDA2150 BY TFK
Model: : TDA2150
Price : $16.00 USD

larger picture

INTEGRADED CIRCUIT SAS6700 BY TFK
Model: : SAS6700
Price : $19.00 USD

larger picture

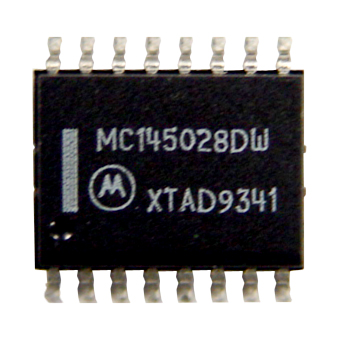

MOTOROLA DECODER MC145028DW
Model: : MC145028DW

product description :

This MC145028 decoder treats all nine trinary digits as an address which allows 19,683 codes. If binary data is encoded, 512 codes are possible. The VT output goes high on the MC145028 when two addresses are consecutively received (in one encoding sequence) which both match the local address.

  • Operating Temp. Range: – 40 to + 85°C
  • Interfaces with RF, Ultrasonic, or Infrared Modulators and Demodulators
  • RC Oscillator, No Crystal Required
  • High External Component Tolerance; Can Use ± 5% Components
  • Internal Power–On Reset Forces All Decoder Outputs Low
  • MC145028 = 4.5 to 18 V
  • Low–Voltage Versions Available:
  • SC41344 = 2.8 to 10 V Version of the MC145028
  • For Infrared Applications, See Application Note AN1016/D
Price : $5.99 USD

larger picture

16-PIN INTEGRADED CIRCUIT TBA990
Model: : TBA990
Price : $15.00 USD

larger picture

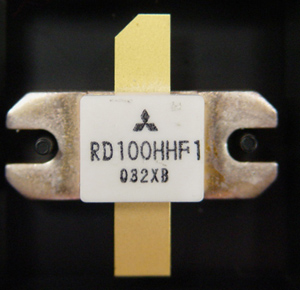

ORIGINAL MITSUBISHI TRANSISTOR RD100HHF1
Model: : RD100HHF1 Data Sheetpdf

product description :

DESCRIPTION
RD100HHF1 is a MOS FET type transistor specifically designed for HF High power amplifiers applications.

FEATURES
High power and High Gain: Pout>100W, Gp>11.5dB @Vdd=12.5V,f=30MHz High Efficiency: 60%typ.on HF Band

APPLICATION
For output stage of high power amplifiers in HF Band mobile radio sets

Price : $99.00 USD

larger picture

NEC14-PIN DIP UPC587C2
Model: : UPC587C2
Price : $3.00 USD

larger picture

16-PIN INTEGRADED CIRCUIT TBA920
Model: : TBA920
Price : $13.00 USD

larger picture

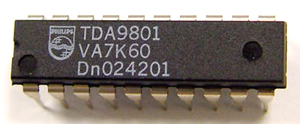

SINGLE STANDARD VIF-PLL DEMODULATOR AND FM-PLL DETECTOR TDA9801- BY PHILLIPS
Model: : TDA9801 Data Sheet

product description :

This is a monolithic integrated circuit for vision and sound IF signal processing in TV and VTR sets and multimedia front-ends.

Price : $6.00 USD

larger picture

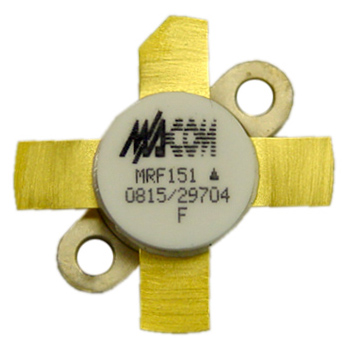

ORIGINAL RF POWER FIELD - EFFECT TRANSISTOR MRF151
Model: : MRF151 Data Sheetpdf

product description :

Designed for broadband commercial and military applications at frequencies to 175 MHz. The high power, high gain and broadband performance of this device makes possible solid state transmitters for FM broadcast or TV channel frequency bands.

  • Guaranteed Performance at 30 MHz, 50 V: Output Power -150 W, Gain- 18 dB (22 dB Typ), Efficiency - 40%
  • Typical Performance at 175 MHz, 50 V: Output Power -150 W, Gain -13 dB
  • Low Thermal Resistance
  • Ruggedness Tested at Rated Output Power
  • Nitride Passivated Die for Enhanced Reliability
Price : $58.00 USD

larger picture

INTEGRADED CIRCUIT TDA1180V
Model: : TDA1180V

Price : $8.00 USD

16-PIN INTEGRADED CIRCUIT TDA2160
Model: : TDA2160

product description :

Price : $22.00 USD
