VIDEO TRANSMITTERS & ANTENNAS

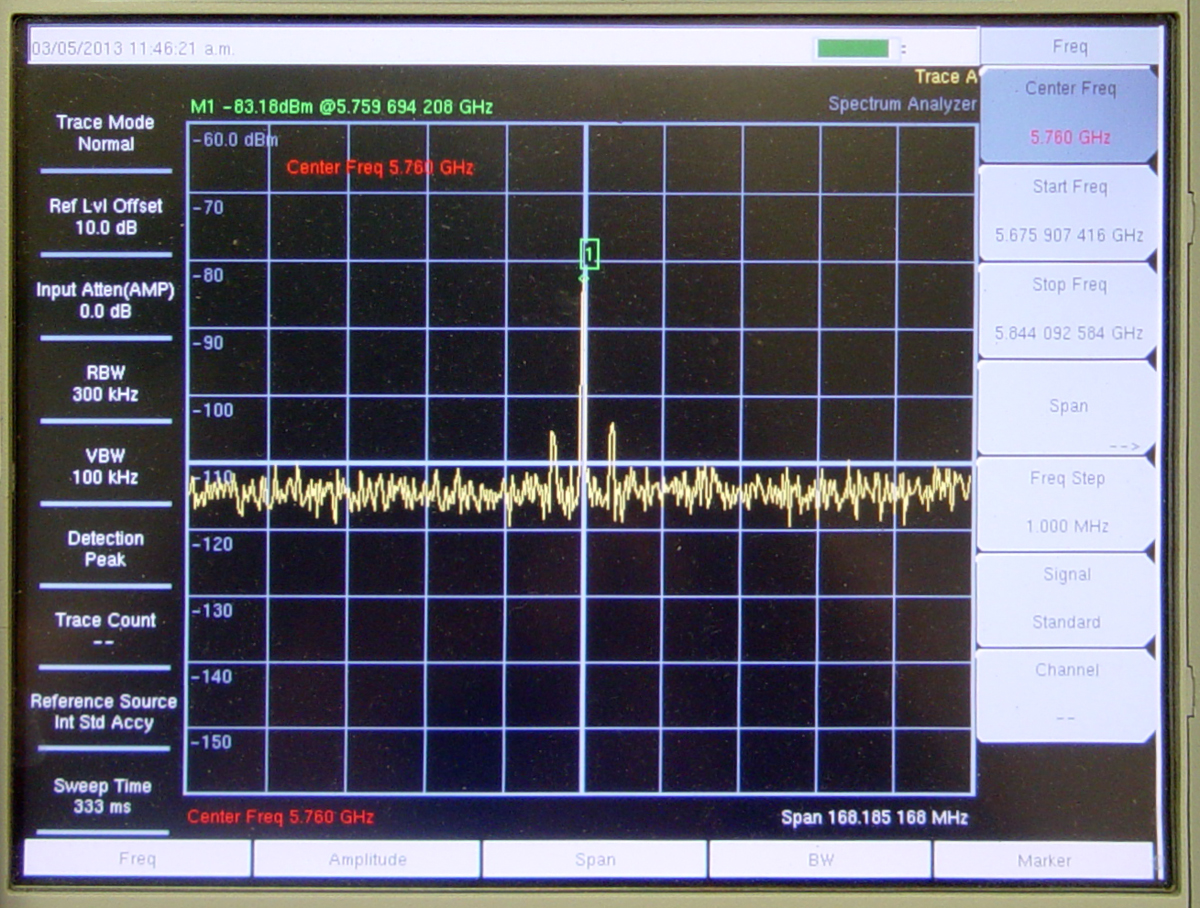

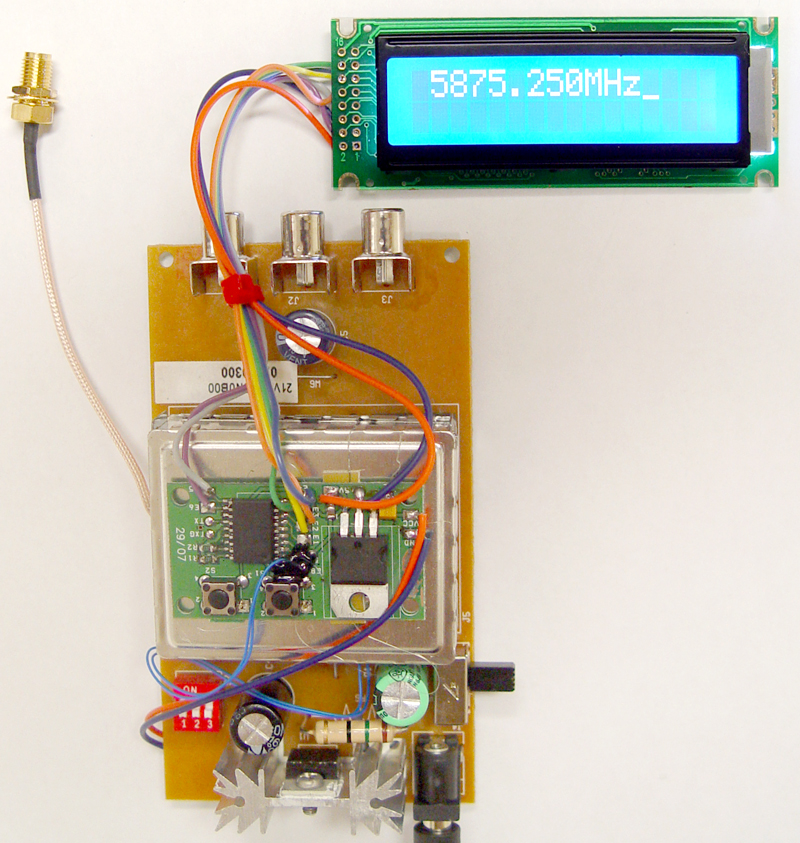

LCD CONTROLLED 5.6GHz-5.8GHz VIDEO TRANSMITTER
Model: : LCD-58T New product
  • Frequency band 5,620- 5,950 MHz
  • RF output 50 mW
  • Video input
  • 2 Audio inputs
  • LCD digital display
  • Up-down buttons
  • Frequency step 250 kHz
  • Simple to use
  • Battery power 9-12 V
  • Current 300 mA
Price : $118.00 USD

Matching reciever 5.7GHz-5.8GHz with 8 channels
Model: 58R New product
  • Frequency band 5,620- 5,950 MHz
  • RF sensitivity -88dBm
  • Video out
  • Two audio channels
  • 12V operation
  • 300 mA current cons.
Price : $68.00 USD

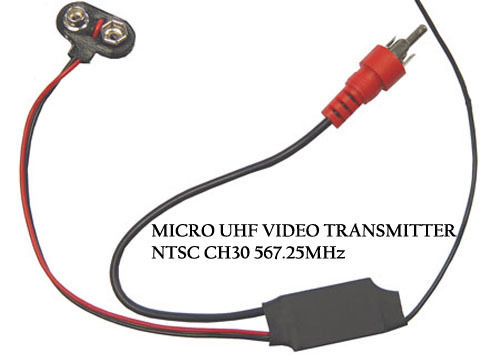

TV TRANSMITTER UHF - MICRO UHF NTSC Video transmitter CH30 -567.25 MHz AIR
Model: : NTSC-30 New product
  • FREQUENCY 567.25MHz AIR CHANNEL 30 UHF
  • CRYSTAL CONTROLLED
  • NTSC TV
  • RANGE UP TO 100 ft
  • 9V BATTERY
  • 40 mA
  • POWER 50 mW
  • COMPOSITE VIDEO RCA
Price : $99.00 USD

TV TRANSMITTER UHF - MICRO UHF NTSC Video transmitter CH20 -507.25 MHz AIR
Model: : NTSC-20 New product
  • FREQUENCY 507.25MHz AIR CHANNEL 20 UHF
  • CRYSTAL CONTROLLED
  • NTSC TV
  • RANGE UP TO 100 ft
  • 9V BATTERY
  • 40 mA
  • POWER 50 mW
  • COMPOSITE VIDEO RCA INPUT
  • ANALOG TV TRANSMITTER
Price : $99.00 USD

HIGH POWER AMPLIFIER 5.6GHz-5.9GHz 750mW
Model: : A58-075 New product
  • Frequency band 5,620- 5,950 MHz
  • RF output 750 mW
  • RF input 5 mW
  • Battery power 9-12 V
  • Current 1,200 mA
Price : $299.00 USD

larger picture

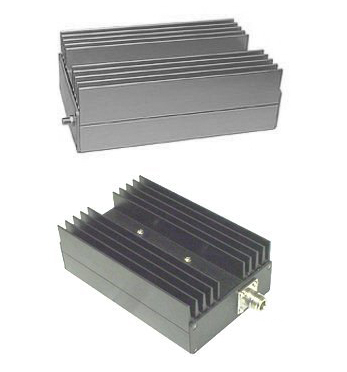

40 W UHF TV -AMPLIFIER FOR TV TRANSMITTERS 460-540 MHz
Model: : VTRANS-1 Data Sheet pdf

product description :

MAKE YOUR OWN 40 W UHF TV TRANSMITTER:
(PAL, NTSC, SECAM or even DIGITAL TV TRANSMITTER)
ALL YOU NEED IS A WIDEBAND RF AMPLIFIER (included) and a TV MODULATOR (not included).

This professional UHF amplifier is connected to the output of any tv modulator. It gives 40W Rf Power in CW mode. Power input is low as 5 mW. Most TV analogue rack-mount modulators give 55-60dBmV's or app 10mW-15mW of output power. This is all you need to go on the AIR. This amplifier is good for frequencies 460MHz- 540MHz or NTSC channels 14-26 (PAL channels 21-31). This amplifier is already filtered with a built-in VSWR and temperature protection. Just add an UHF antenna and you are good to go. This amp runs on car battery 12V as well. Simple instructions are included.

Price : $399.00

larger picture

40 W UHF TV -AMPLIFIER FOR TV TRANSMITTERS 400-540 MHz
Model: : VTRANS-1B Data Sheet pdf

product description :

MAKE YOUR OWN 40 W UHF TV TRANSMITTER:
(PAL, NTSC, SECAM or even DIGITAL TV TRANSMITTER)
ALL YOU NEED IS A WIDEBAND RF AMPLIFIER (included) and a TV MODULATOR (not included).

This professional UHF amplifier is connected to the output of any tv modulator. It gives 40W Rf Power in CW mode. Power input is low as 5 mW. Most TV analogue rack-mount modulators give 55-60dBmV's or app 10mW-15mW of output power. This is all you need to go on the AIR.This amplifier is already filtered with a built-in VSWR and temperature protection. Just add an UHF antenna and you are good to go. This amp runs on car battery 12V as well. Simple instructions are included.

Price : $499.00

larger picture

40 W VHF TV -AMPLIFIER FOR TV TRANSMITTERS 175-250 MHz
Model: : VTRANS-2 Data Sheet pdf

product description :

MAKE YOUR OWN 40 W UHF TV TRANSMITTER:
(PAL, NTSC, SECAM or even DIGITAL TV TRANSMITTER)
ALL YOU NEED IS A WIDEBAND RF AMPLIFIER (included) and a TV MODULATOR (not included).

This professional VHF amplifier is connected to the output of any tv modulator. It gives 40W Rf Power in CW mode. Power input is low as 5 mW. Most TV analogue rack-mount modulators give 55-60dBmV's or app 10mW-15mW of output power. This is all you need to go on the AIR. This amplifier is good for frequencies 175-250 MHz. This amplifier is already filtered with a built-in VSWR and temperature protection. Just add an VHF antenna and you are good to go. This amp runs on car battery 12V DC as well. Simple instructions are included.

Price : $399.00

larger picture

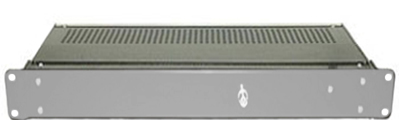

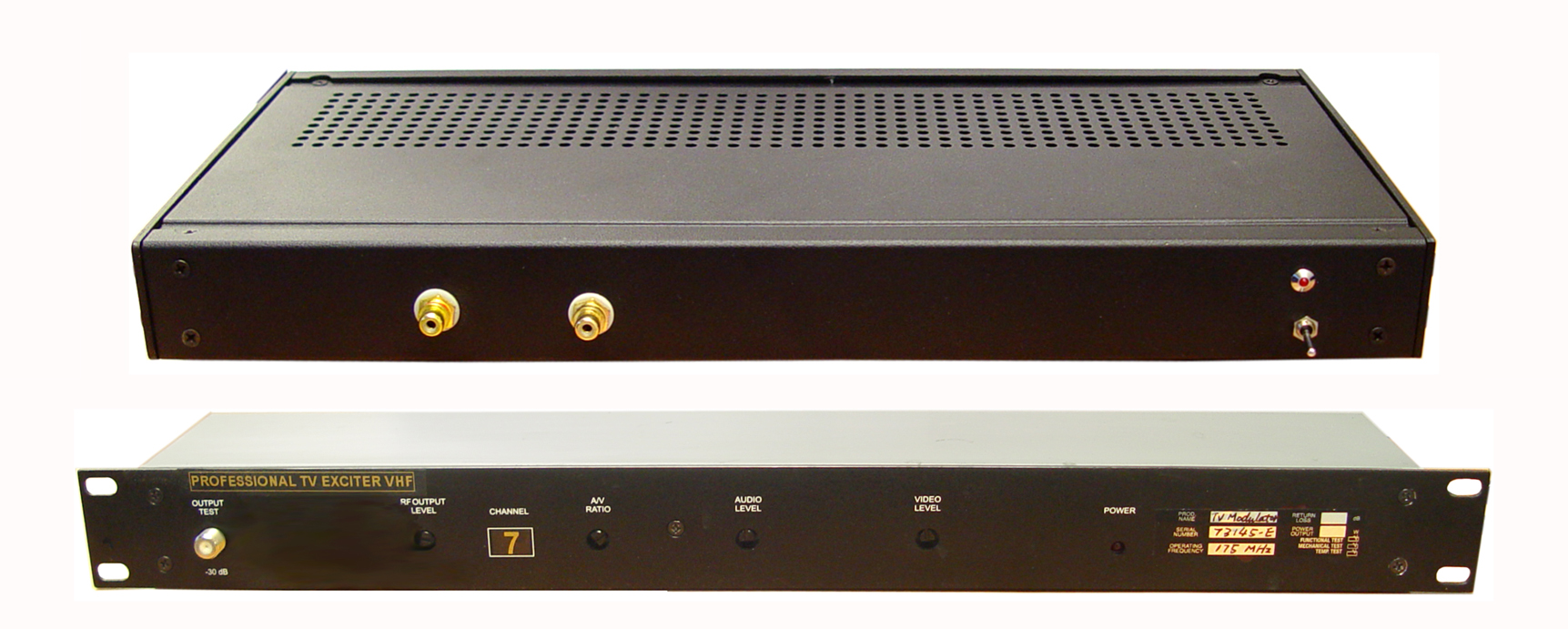

VHF TV TRANSMITTER - CH8, 30W
Model: : VHF-TRANS-30 Data Sheet pdf

product description :

  • Brand new Mobile Video transmitter
  • Works on 12 VDC
  • Cabinet Rack: 17"-1U
  • Dimensions: 17” x 2” x 8”
  • Weight: 7 Lbs
  • Temperature: -5° to +45°C
  • Antenna excluded

Price : $550.00

 in stock

VHF TV AMPLIFIER - 175-250 MHz, 30W
Model: : VHF-TRANS-VHFR

product description :

  • Brand new RF AMPLIFIER for Mobile Video transmitters
  • Works on 12 VDC
  • Cabinet Rack: 17"-1U
  • Dimensions: 17” x 2” x 8”
  • Weight: 7 Lbs
  • Temperature: -5° to +45°C

Price : $400.00

 in stock

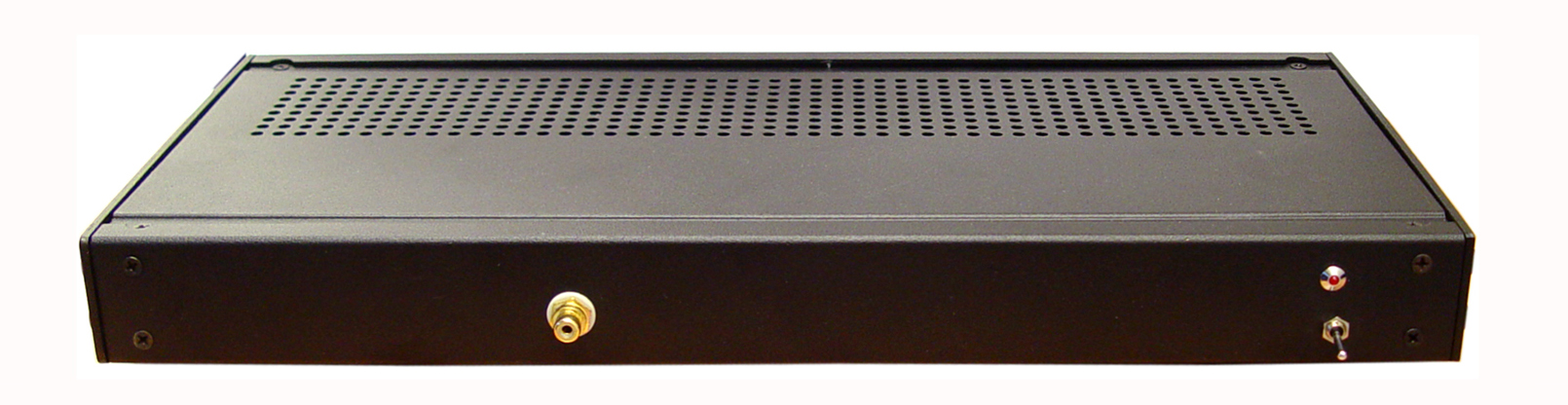

VHF TV AMPLIFIER - 400-530 MHz, 60W
Model: : UHF-TRANS-UHFR

product description :

  • Brand new RF AMPLIFIER for Mobile Video transmitters
  • Works on 12 VDC
  • Cabinet Rack: 17"-1U
  • Dimensions: 17” x 2” x 8”
  • Weight: 7 Lbs
  • Temperature: -5° to +45°C

Price : $400.00

 in stock

larger picture

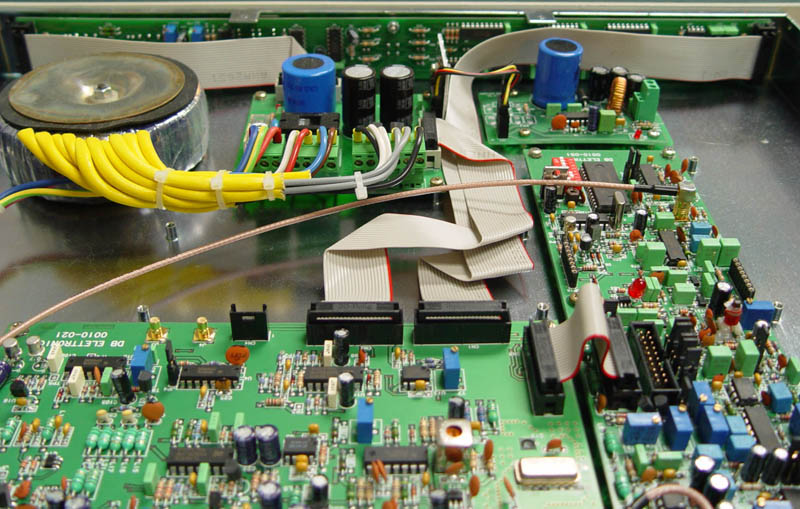

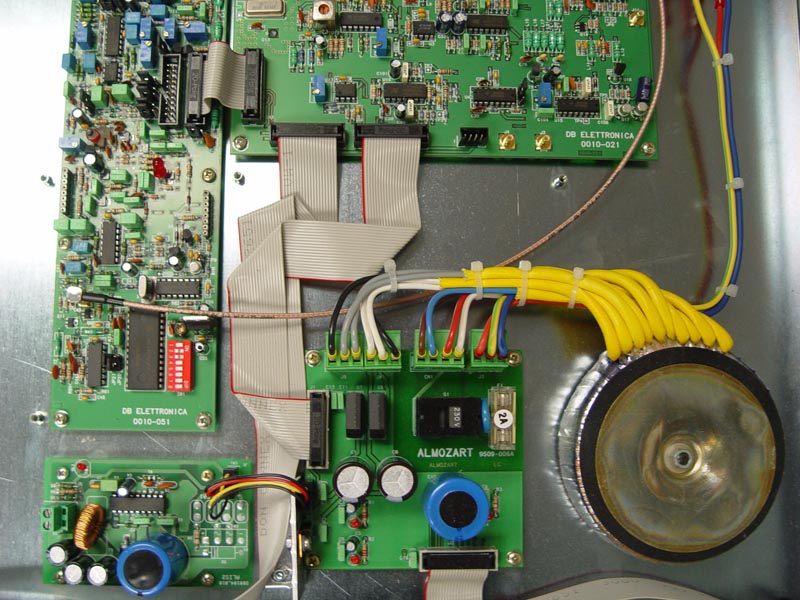

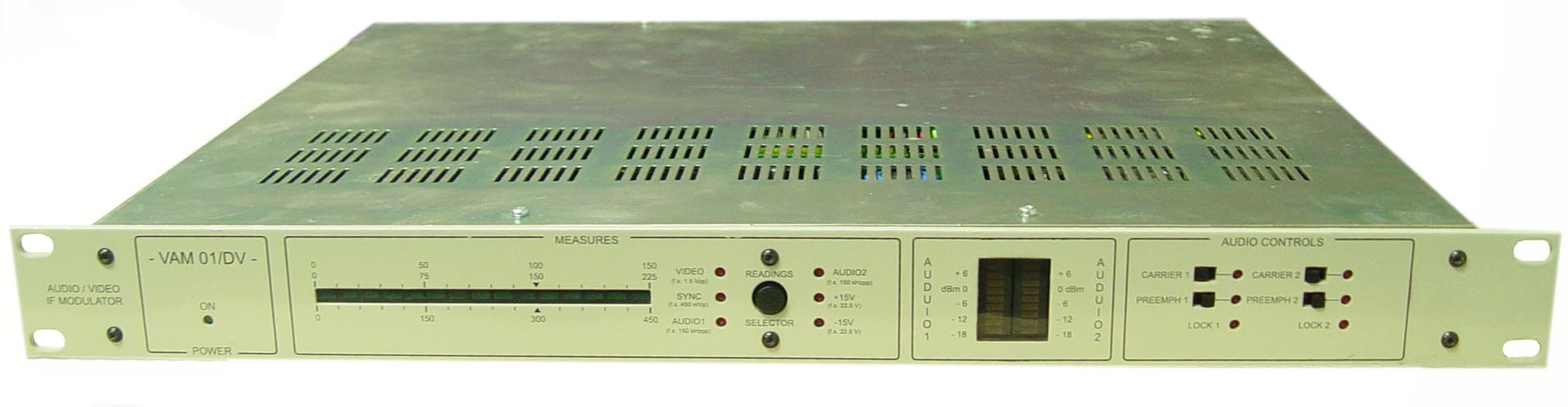

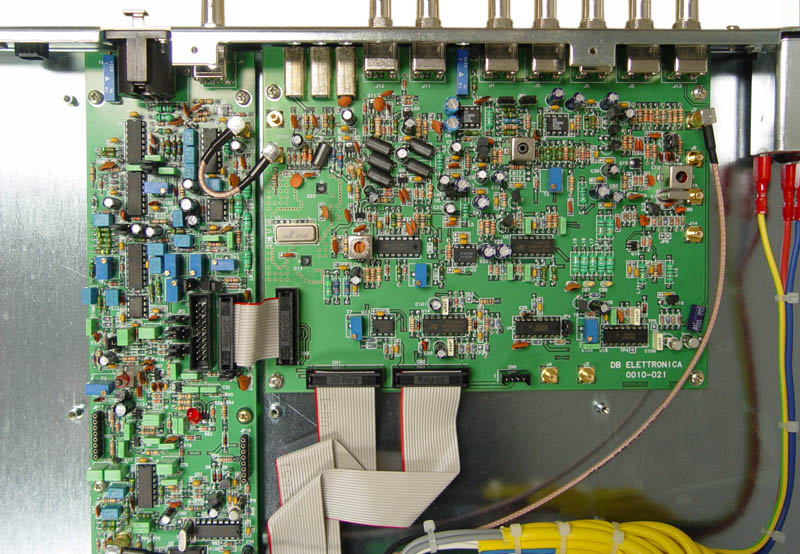

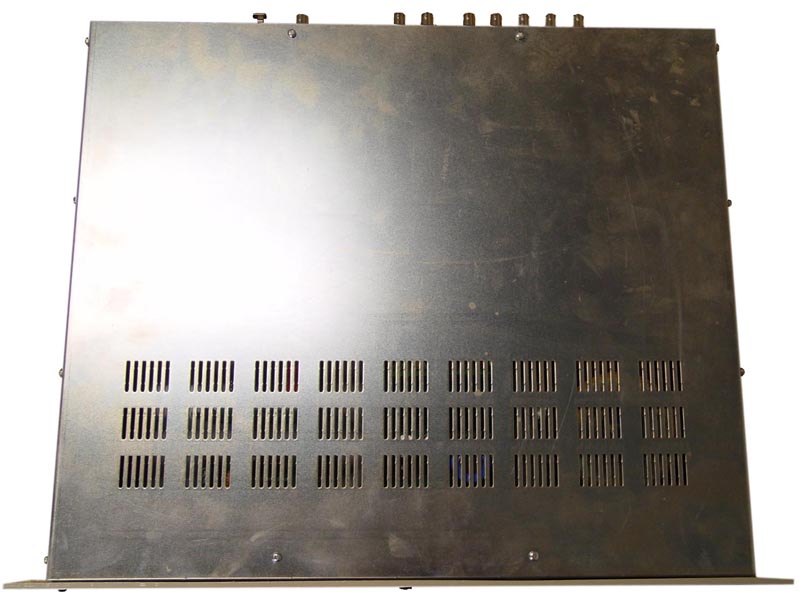

PAL PROFESSIONAL AUDIO/VIDEO IF MODULATOR (IF 38.9MHz)
Model: : VAM01/DV Data Sheet pdf

Brand new unit!

larger picture larger picturelarger picturelarger picture

Price : $300.00

larger picture

WIDEBAND TV TRANSMITTER HIGH GAIN UHF ANTENNA 470-860 mhZ
Model: : LOG-250

product description :

ANTENNA COMES ASSEMBLED

  • ALL FREQUENCIES FROM 470-860 MHz
  • COMES ASSEMBLED IN BOX
  • N -FEMALE CONNECTOR
  • PERFECT FOR ALL UHF TV TRANSMITTERS
  • NO TUNING REQUIRED
  • WIDEBAND ANTENNA
  • GAIN 11 dB
  • 50 OHMS IMPEDANCE
  • EXCELLENT VSWR 1.5-1.8 FOR ALL FREQUENCIES
  • MOUNTING BRACKET INCLUDED
  • MAXIMUM POWER 150 W
Price : $100.00

larger picture

TELESCOPIC SCANNER ANTENNA FOR YUPITERU, AOR, KENWOOD, YAESU
Model: : AN-480

product description :

ANTENNA COMES REASSEMBLED

  • Dimensions: 12.2 " X 0.5 ".
  • dB Gain: 4 dB

Long distance UHF option excellent for scanners, Video transmitters and receivers from 470-860 MHz

Price : $ 10.00 USD
